Custom Flood Panel

A customizable, aluminum flood panel that is a time-tested solution for flood prone locations.

Flood Panel

MADE IN THE USA

The Flood Panel is an aluminum removable flood barrier that is engineered to withstand hurricane forces and flood water impact. Each panel is custom-designed to fit the full Design Flood Elevation and is edged with a neoprene gasket.

SPECS

3-PART SPECS


User Friendly

One Size Fastening Bolt For All Mounting Locations

Durable

45° Braces Or Mid-
Span Support Posts

Mounting Options

Pre-Installed Anchors Or Mounting Plates

Custom Sizes

Dimensions To Fit
Your Needs

Versatile

Conforms To
Sloped Ground

MOUNTING PLATES

The panels attach to the floor and sides of the building opening using hex bolts that fasten to either pre-installed anchors or mounting plates. Mounting plates can allow for more rapid deployment and are available in primed steel or stainless steel and can be painted to blend with the building color.

CONFIGURATION OPTIONS

Panels can be fabricated in any size and configuration with design heights varying from 12" to over 7'.

Panel with vertical seam and support kickers

Panel with horizontal seam

Customized Support columns on-top of a curb in order to support load.
Connection points at the top support steel beam and bottom at the concrete curb.

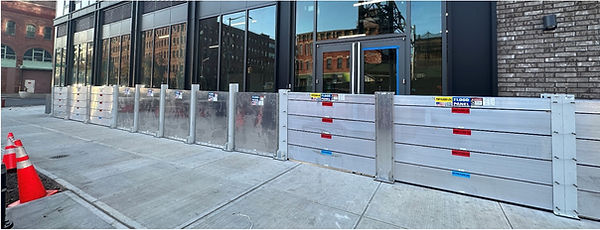

Can be used in conjunction with Flood Logs in areas where long arrays are required and the ground condition changes in elevation

FEATURED PROJECTS

Recent Hinged Gate Projects installed by our installation team
