Flood Logs
A customizable, stackable aluminum flood barrier that is a time-tested solution for flood or hurricane prone locations.
Mega Flood Logs

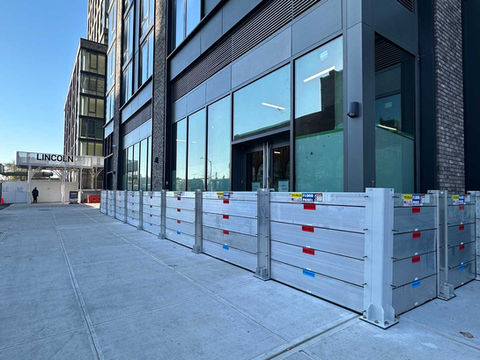

The Flood Panel Mega Flood Logs System by Floodproofing.com is designed to be highly resistant to heavy impact forces and withstand high-velocity water loads. It is particularly applicable to flash flood and hurricane-prone locations as an effective flood barrier that is backed & supported by a majority of flood insurance companies and government officials. The innovative design makes it easy to install, quick to deploy and aesthetically pleasing when not active.
INSTALL INSTRUCTIONS
3-PART SPECS
 |
|---|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
MADE IN THE USA
ANSI/FM 2510 Performance Testing
Floodproofing.com conducted third-party testing of the Flood Panel Mega Flood Logs in accordance with the ANSI/FM 2510 hydrostatic and impact performance standards.
Two configurations were tested:
-
12-ft. W x 5-ft. H with mid-span post
-
5-ft. W x 8-ft. H
Seepage Results:
-
12-ft. W x 5-ft. H - PASS (0.01 gallons/hour)
-
5-ft. W 8-ft. H - PASS (0.01 gallons/hour)
Impact Results:
-
12-ft. W x 5-ft. H - PASS
-
5-ft. W 8-ft. H - PASS
KEY BENEFITS
EASY ASSEMBLY
The Flood Panel Mega Flood Logs offer one of the lowest reaction times of flood control systems on the market and can be assembled by just one or two people.
"C" SHAPED
SUPPORT POSTS
The system comprises of a series of "C" shaped support posts and hollow aluminum beams that anchor the flood barrier system. These beams stack on edge with each other with a tongue and groove connection. The bottom beam of each span is fitted with a large rubber seal that makes contact with the surface thereby achieving a watertight seal. The support posts that attach to the building structure can be installed on a removable basis minimizing the aesthetic impact on the building.
A modular, stackable system makes it easy to be installed in specific flood-prone areas of your project, including window openings, across doors and storefronts, as well as an entire perimeter defense against flooding. Because of its modular design, it can run the length of any sized structure with a maximum height of 9 feet and can accommodate slopes of 20 degrees.
MODULAR SYSTEM
EASY STORAGE
Custom storage shelves are available to ensure Flood Logs are organized and ready to be deployed when needed.
STANDARD WALL MOUNTS
Below is our standard wall mounts that we offer with our Flood Logs. We can also customize the end channels to meet with job site conditions and aesthetics.
Offset Mount
Offset wall mount provides an offset when the barriers need to make room for trim, door handles or other protrusions. Most popular mounting type.
Jamb Offset Mount
Jamb Offset Wall Mount has a smaller profile then the OSW. Great for areas with limited wall space.
Jamb Mount
Jamb mounts can be used in combination with our offset mount when one side of the opening has a 90-degree wall. It can also be used in jamb to jamb conditions.
"Z" Mount
The Z mount allows the channel to mount within the lamb to minimize the aesthetic impact on the building. The Z design also gives and offset to go around any protrusions.
INTERIOR & CUSTOM WALL MOUNTS
Below is our standard interior wall mounts and custom wall mounts for our Flood Log system.
Interior Mount
Interior Offset wall mount allows the flood barrier to be on the interior when an exterior barrier is not an option. The compression bolts are reversed allowing the system to be accessed with
the door open.
Extended Offset Mount
Flood barriers may need an extended offset but not enough for a U shaped corral. Our offset mount can be extended 1' 6" to ensure nothing is in the way of the barrier, like a gas meter or architectural detail
on the building.
Custom Interior Mount
Interior mounts, like exterior, may have limited mounting space. We can customize solutions to ensure the barriers will fit within the space provided and work as intended.
Custom Jamb Mount
For every problem we have a solution! Our customized mounts all allow us to provide you with a flood barrier that works as intended within the space provided.
CUSTOM WALL PLATES
Wall plates are perfect in creating the ideal conditions (flat, level and paper-smooth), however the building finishes and aesthetics may not allow for a flat wall plate. We can customize our wall plated to fit within the building conditions, to the barrier is attached to the structure of the building and finishes can go around the plates.
Flat Wall Plate
Flat Wall Plates are mounted permanently to the structure. They come in standard sizes or can be customized to be wider and/or taller to match building aesthetics.
L Angle Wall Plate
L angle wall plates are great in helping conceal the flood barriers. Attaching to the face of the structure and creating a jamb condition for the flood barriers to attach to. Angle can be customized to match thickness of building finishes.
Hat Wall Plate
Great for buildings that have finishes that will not allow the flood barrier to attach directly to the face of the building. The hat channels attach to the structure of the building and allow finishes to butt up against it. Channels can be customized to match thickness of building finishes.
FINISHED WALL PLATES
When aesthetics are a main factor in determining the best design, we have the ability to provide a finished look that blends nicely with the architecture of the building and still provides an adequate sealing surface for optimum performance
